Conveyor Wear Strips & Side Guide Rails

Wear strips are the long, flat polymer bars that line conveyor side rails, chain return paths and product guide channels. The slick surface lets product (bottles, cans, glass jars, aluminium cases) slide without hanging up. We supply three resin grades: UHMWPE for the lowest-friction food and beverage applications, HDPE as the economy choice for light-duty packaging, and cast nylon (Nylon MC 901) for heavy industrial and oil-mist environments.

Get Quote WhatsApp

Specifications & MOQ

All SKUs are made-to-order from our own UHMWPE / HDPE / nylon production line. Send your DWG / DXF / PDF / STEP — we quote within 24 hours, MOQ from 1 piece.

Product	MOQ	Material
UHMWPE Wear Strip (flat profile, slick low-friction surface)	20 m	UHMWPE GUR1020 (virgin)
HDPE Wear Strip (economy version, dry running)	20 m	HDPE 100% virgin

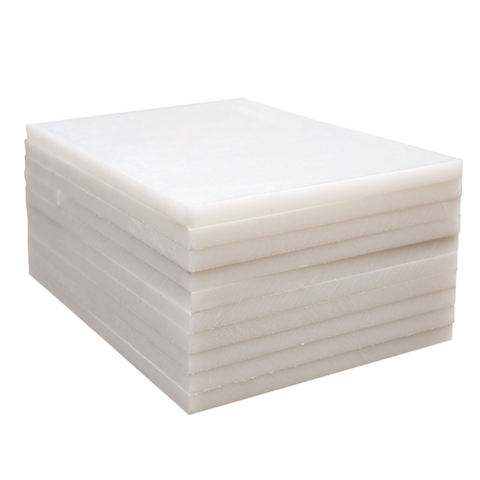

Nylon MC Wear Strip (high tensile, oil & grease tolerant)	20 m	Nylon MC 901 (cast monomer)

Technical Specifications

Material Options	UHMWPE GUR1020 / HDPE virgin / Nylon MC 901 (cast monomer)
Standard Widths	25 / 38 / 50 / 75 / 100 mm
Standard Thicknesses	6 / 8 / 10 / 12 / 15 / 20 / 25 mm
Standard Length	2 m / 3 m / 4 m bars
Color Options	UHMWPE: Green / Black / White / Yellow / Blue / Red. HDPE: Black or natural. Nylon: Blue / Natural.
Coefficient of Friction (UHMWPE vs steel)	0.10 – 0.20
FDA Food Contact	Available on UHMWPE per FDA 21 CFR 177.1520
Profile Options	Flat / chamfered edge / radiused edge / T-slot / chain pocket

Application Cases

Beverage Bottling Line Side-Rail Wear Strip Replacement

How a 30,000 BPH glass bottle line replaced HDPE side rails with FDA-grade UHMWPE for 4× life.

Read case →

Aluminium Can Filler Chain Guide Upgrade — CT-K Profile

Upgrading a slat-chain conveyor on an aluminium can filler from a generic to CT-K profile UHMWPE chain guide.

Read case →

Frequently Asked Questions

Which resin grade should I pick for a beverage filling line?

UHMWPE — lowest friction, FDA-compliant grade available, and won't mark glass bottles. The slightly higher resin cost is offset by 3 – 5× longer service life vs HDPE.

Can you make wear strips with custom edge profiles?

Yes — chamfered edges, radiused edges, T-slot for bottle-base guidance, and chain-pocket profiles are all standard. Send the cross-section drawing.

MOQ for one custom width of UHMWPE wear strip?

20 m total combined any color and length once the cross-section is set. New cross-section profiles need a small extrusion die (3 – 5 day lead time) so first-order MOQ is 100 m to amortize tooling.
